Description

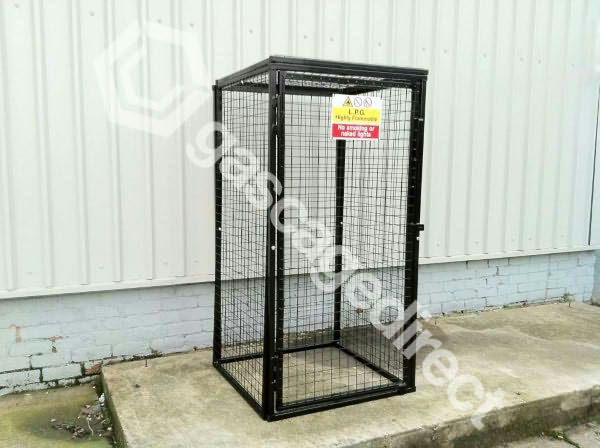

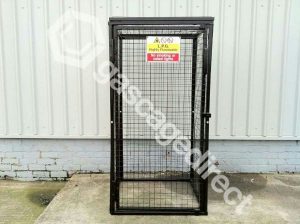

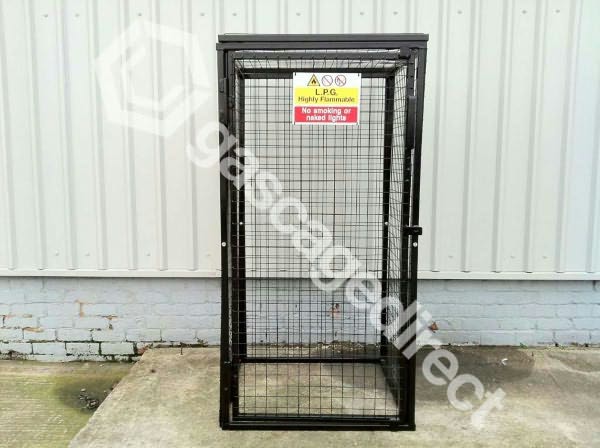

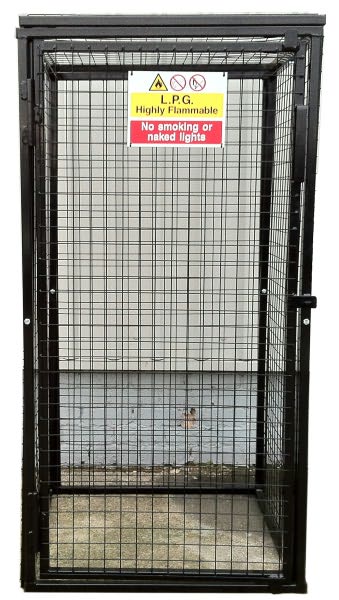

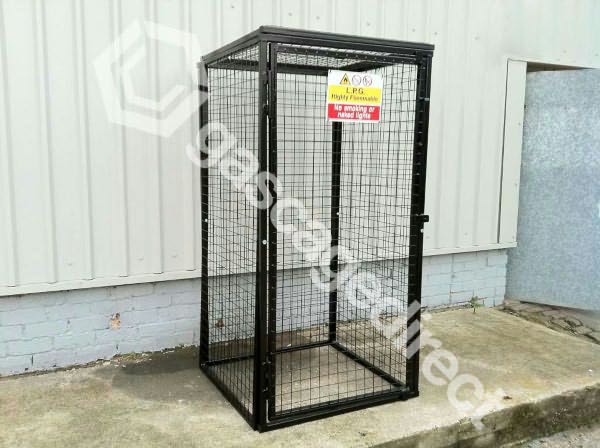

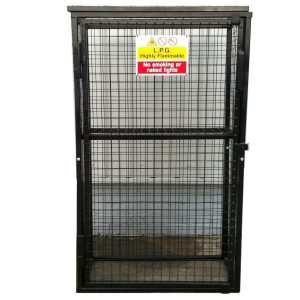

Product Specification: Gas Cylinder Storage Cage
Download Assembly Instructions GC20 – Product Specification Sheet
- Accepts 4 x 47kg cylinders
- External Dimensions: H1800mm x W900mm x D900mm
- Weight: 80kg
- Colours: Black, Blue, Red, Green, Light Grey,Yellow, Silver (non-RAL) or Galvanised.
- Manufactured from 30mm Box Section
- 50 x 50 x 3mm Weld Mesh

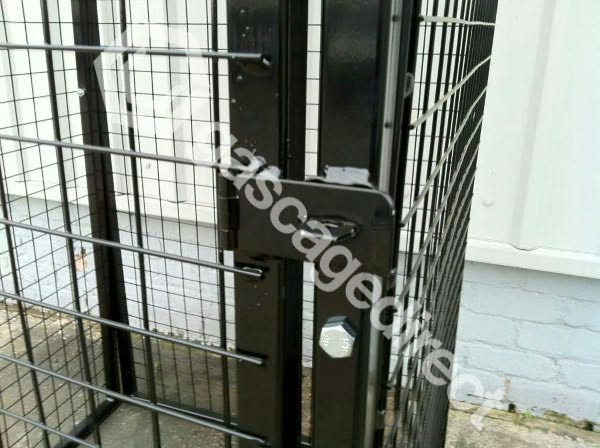

- Hinged door with hasp and Staple (Padlock not included)
- Fixing points for bolting to solid surface
- Supplied Flat Packed with fixings

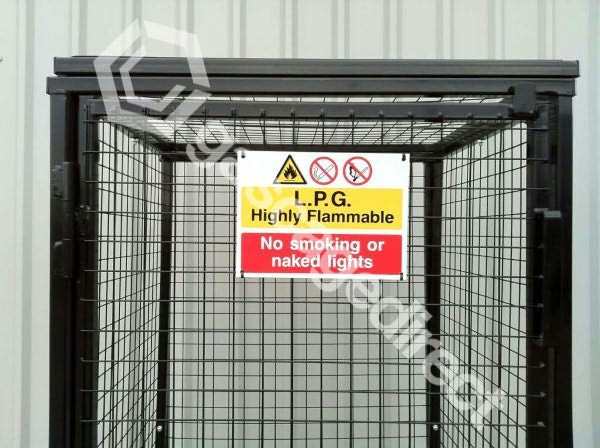

- Includes Standard H&S Signage.

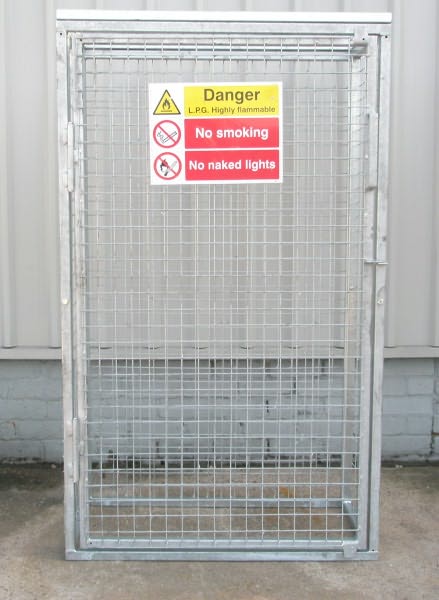

- As seen in image. Custom signage is available at extra cost.

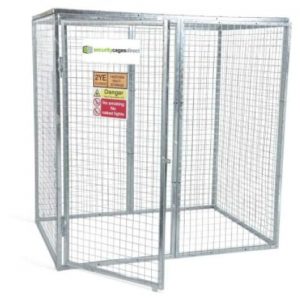

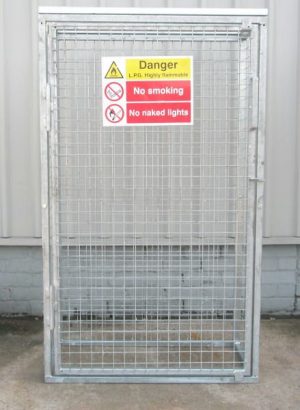

- Lead time, please allow approx. 10-12 working days (Powder Coated) and approx. 14-18 working days (Galvanised). We do have an alternative range of Galvanised cages from stock! Please search for our “Godzilla” range for further details.
- Base available separately – Please add to your order
- Floor fixing available – not included as standard
- Shelf available separately – please add to your order
- Designed for 4 x 47KG bottles but suitable for other applications

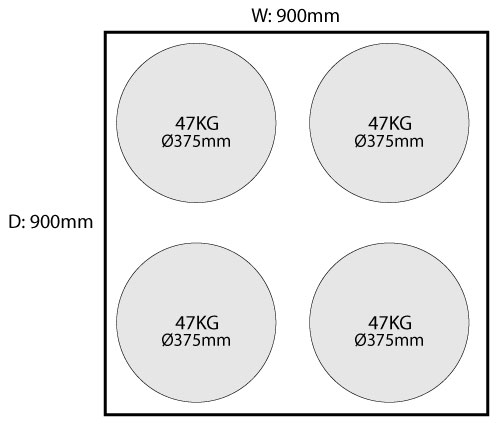

Plan View – Suggested Configuration.
For guidance purposes only
Optional Floor Fixings: Pack of 4 M8 Bolts for fixing cage down to concrete only. Not suitable for wood or brick. 10mm Drill bit required. Available here. Must be added to your basket when ordering a cage to include with delivery.
- Shelf available seperately – please add to your order
